Pump electrical and mechanical properties:
– Motor: Electronically commuted spherical motor
– Rated voltage: 12V DC
– Power consumption: 18W
– Maximum pressure head: 5.3m
– Maximum flow: 1100L/h
– Maximum system temperature: 60°C
– Materials: NORYL GFN2, EPDM O-rings, Copper Coils, Stainless Steel Shaft, Graphite Bushing
– Power connector: 4-Pin Molex and 4-Pin PWM FAN connector
Technical specifications:
– Reservoir diameter 60mm
– Reservoir free volume: ~115mL
– Overall unit height: 120mm
– Mounting hole pattern: 50x50mm

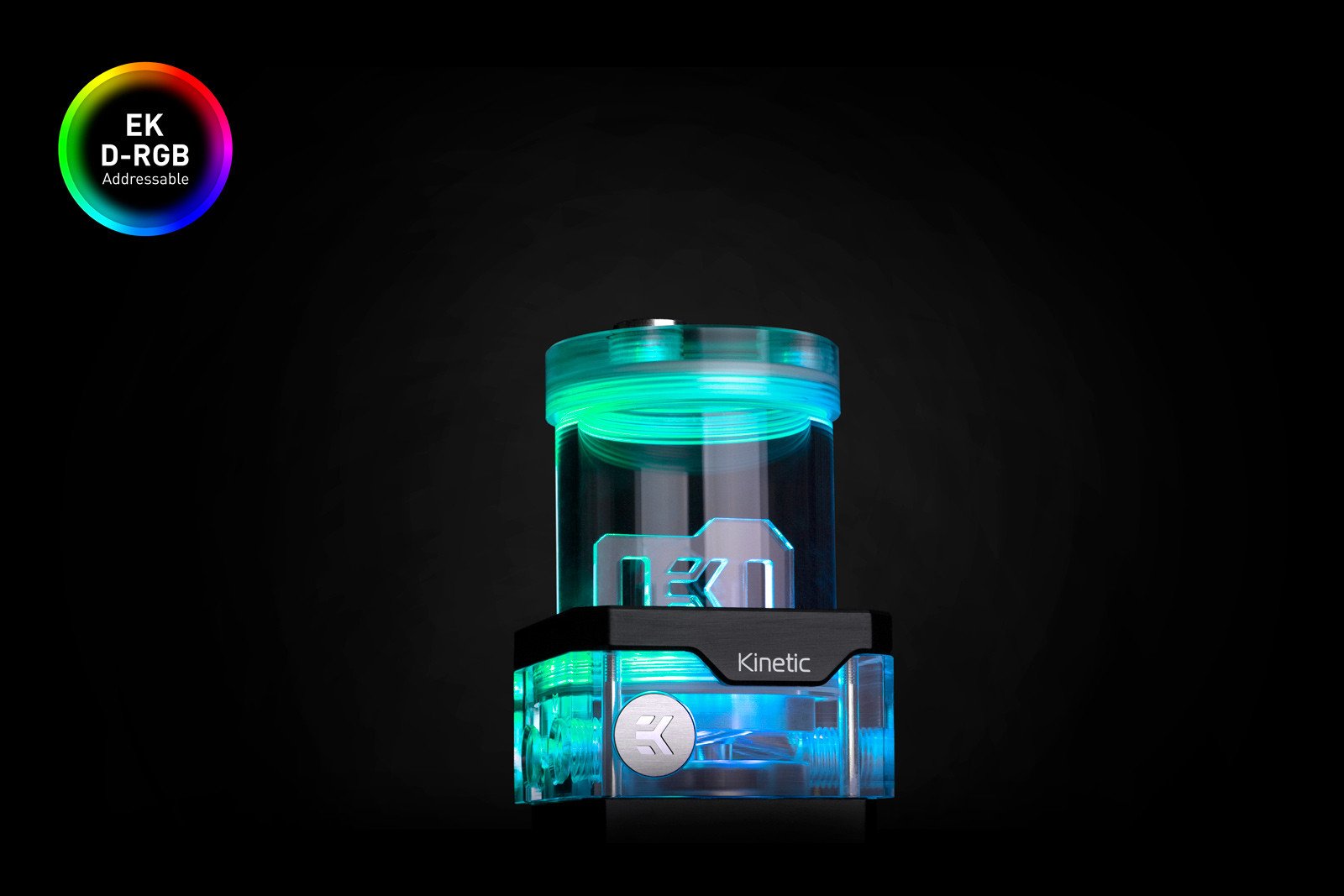

– D-RGB connector standard 3-pin (5+, Digital, Blocked, Ground)
Operational regime:
– PWM duty cycle: ~ 11-100%
– Default behavior: Runs at 100% duty cycle when no PWM feedback signal is present
Enclosed:

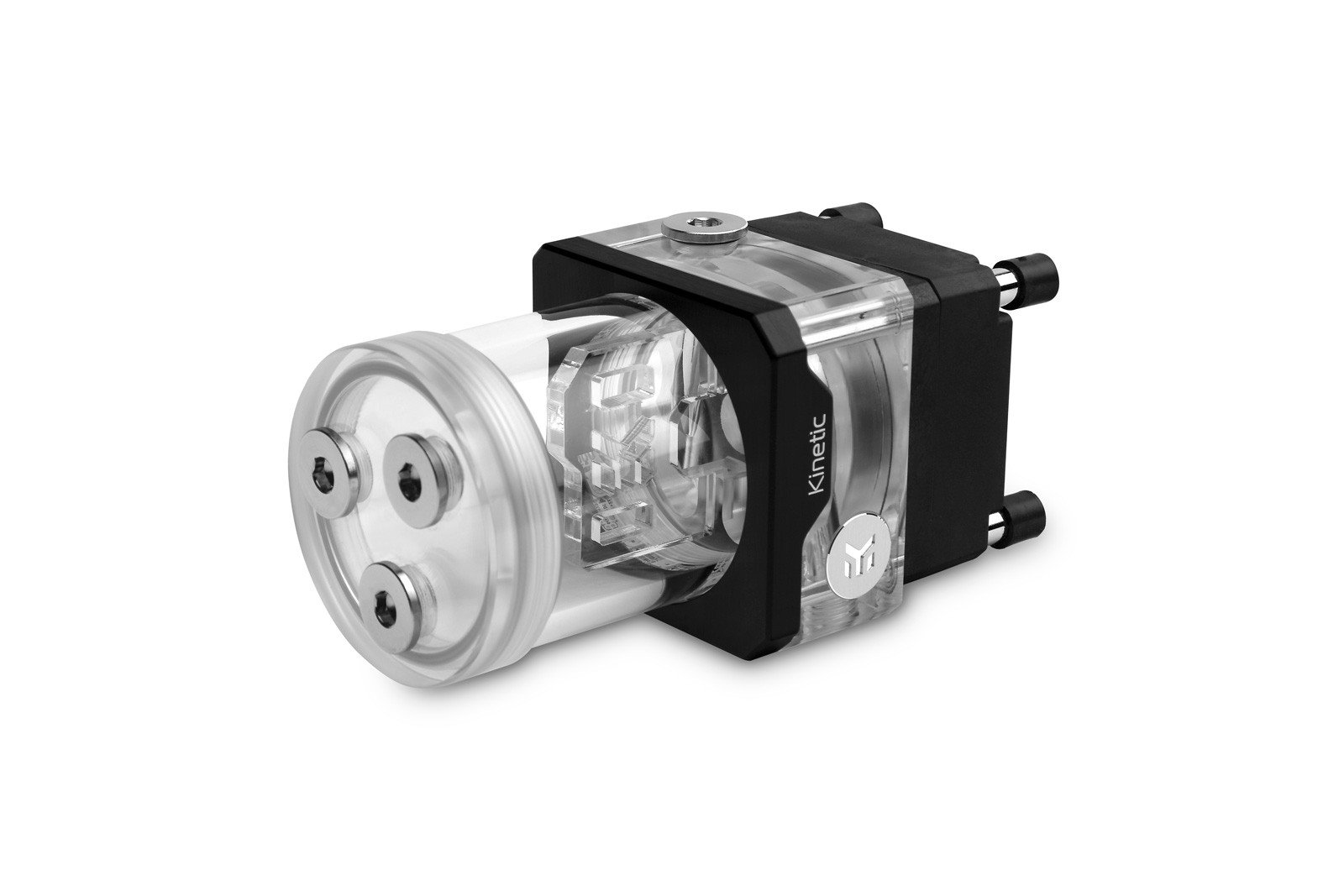

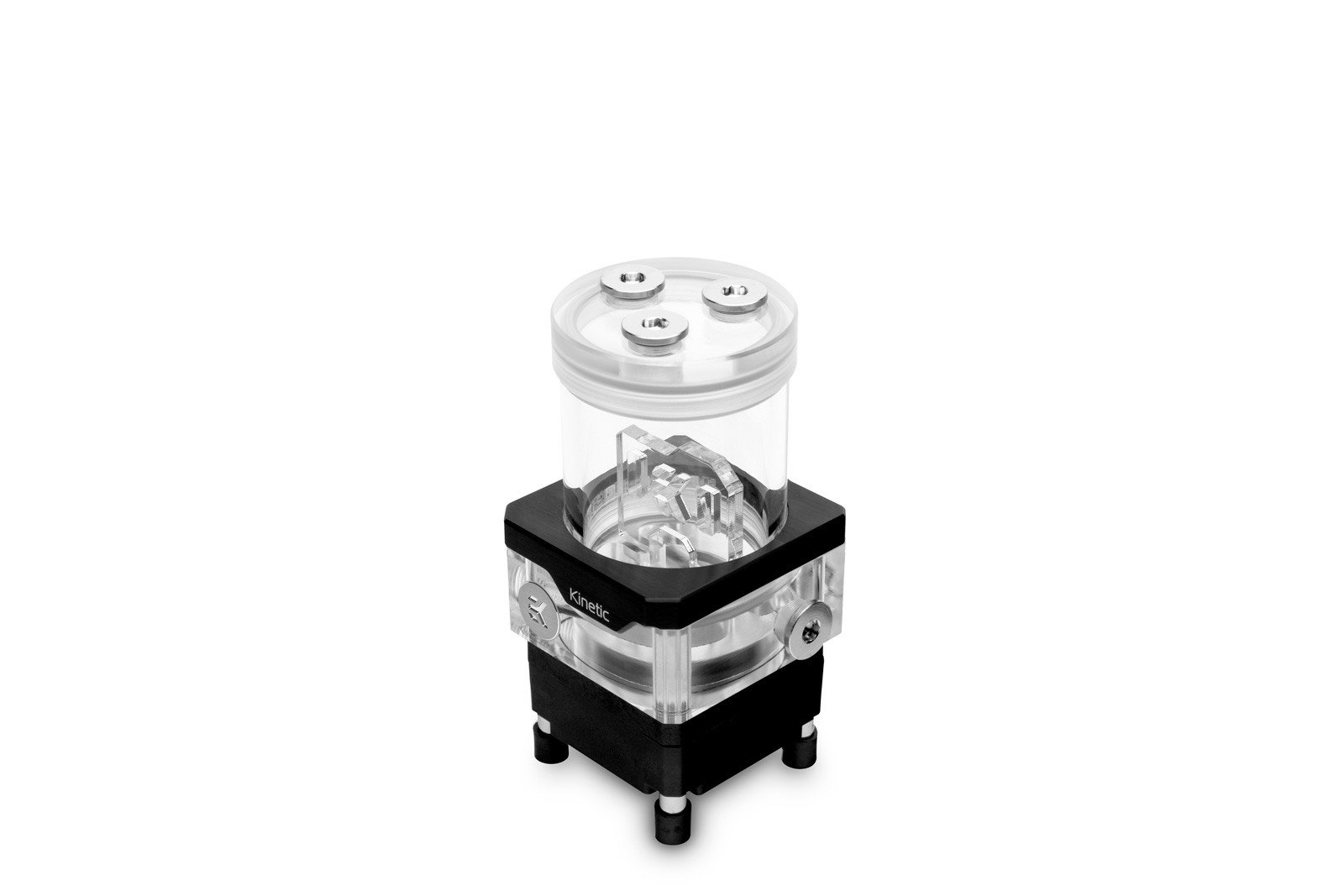

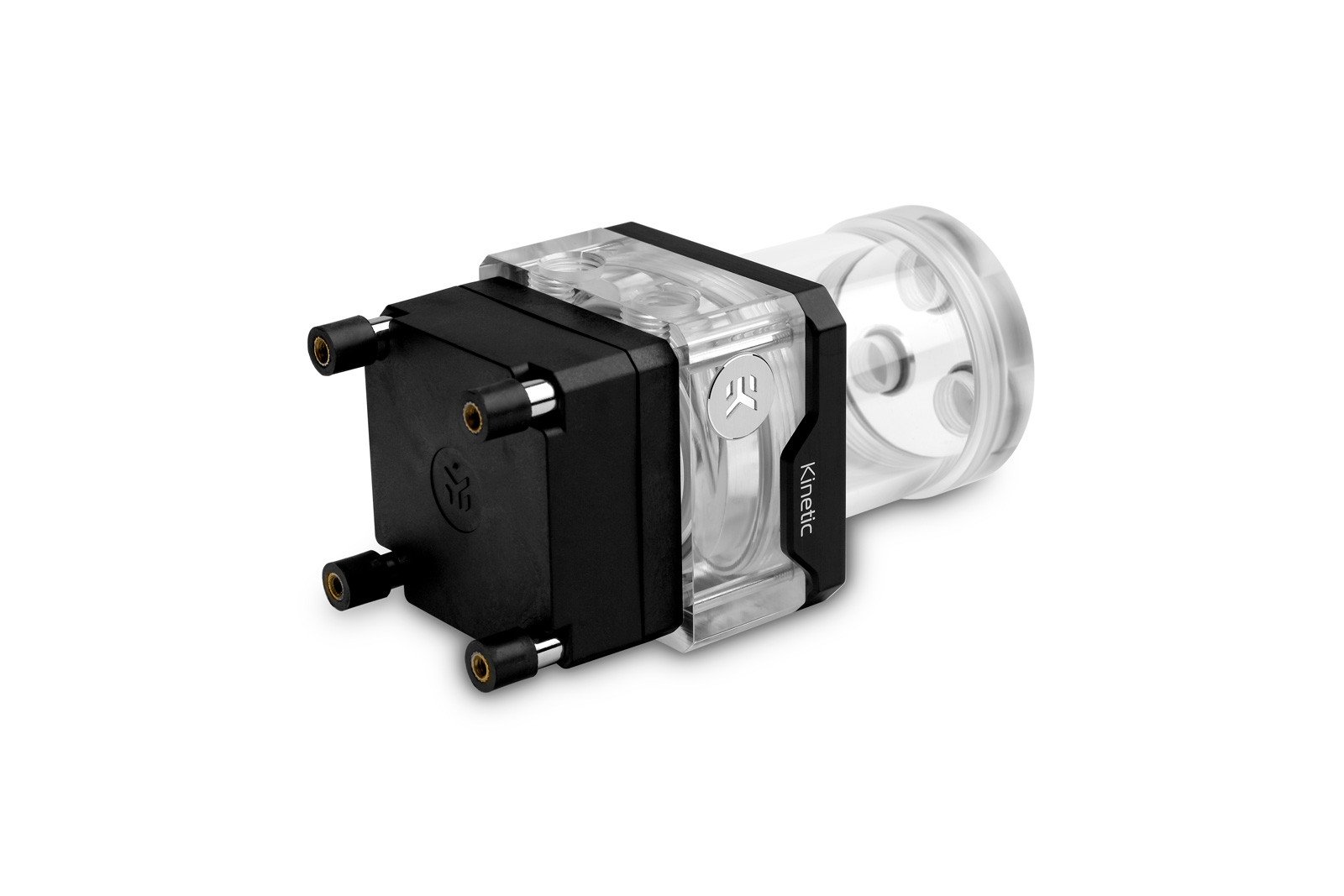

– EK-Quantum Kinetic TBE 120 VTX PWM D-RGB
– Mounting mechanism
– Installation manual
Made in Slovenia – EU!
VTX Pump motor made in the EU!
PLEASE NOTE:
- The VTX pump is water lubricated and it must not be run dry; otherwise, permanent bearing damage can occur.
- This product should NOT be installed with any aluminum Fluid Gaming parts!
Additional Info
| Threads | G1/4 |
|---|
