Model | Dark Rock Pro TR4 |
Overall dimensions without mounting material (L x W x H), (mm) | 146 x 136 x 163 |
Total weight (kg) | 1.18 |
TDP (W) | 250 |
Socket compatibility AMD | sTRX4 / TR4 |
Socket compatibility Intel | – |
Fan model, number | 1x Silent Wings 3 120mm PWM / 1x Silent Wings 135mm PWM |
Decoupled fan mounting | ✓ |
Overall noise level (dB(A)) @ 50/75/100% (rpm) | 12.8 / 17.9 / 24.3 |

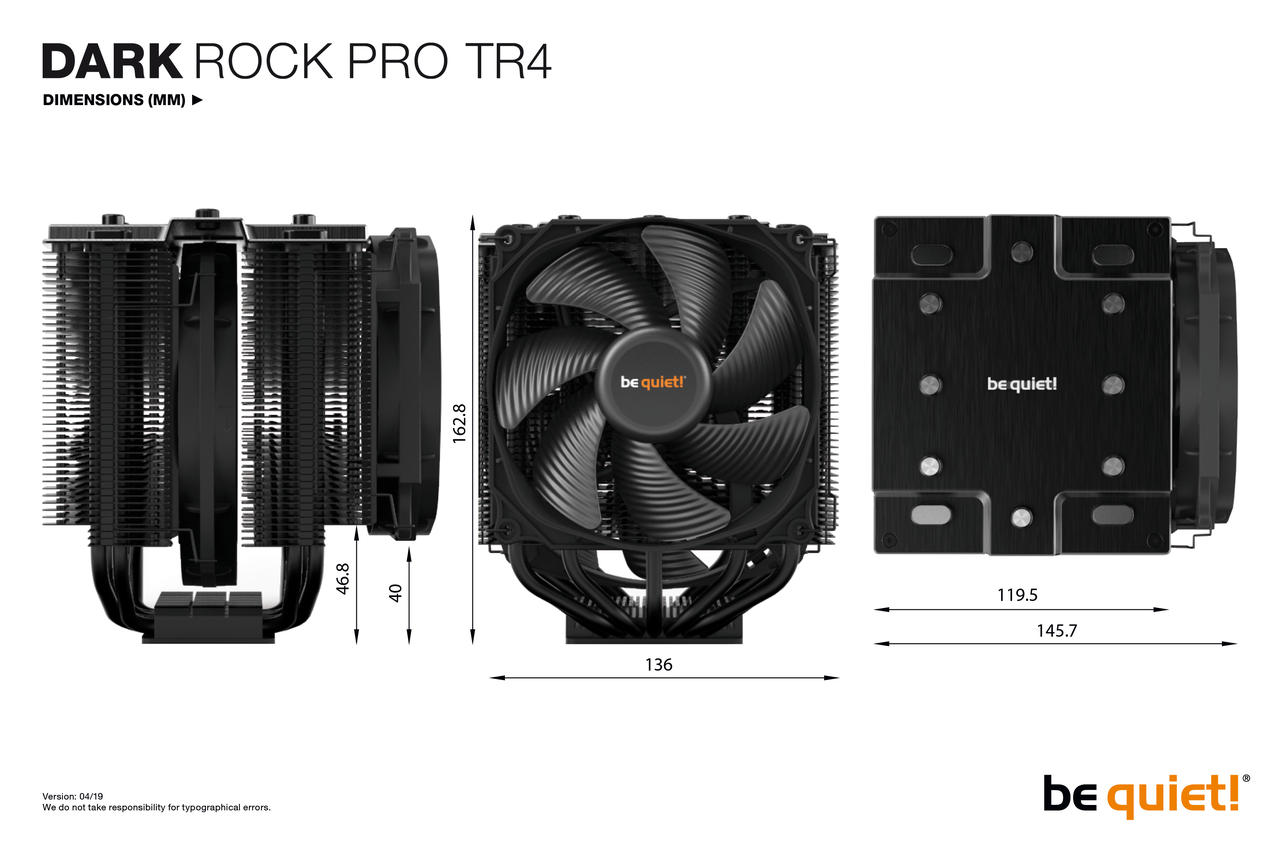

Infographics
Heatsink specifications
Dimensions (L x W x H), (mm) | 163 x 136 x 121 |
Number of fins | 90 |
Fin material | Aluminum |
Base material | Copper |
CPU contact surface | CNC machined |
Heatpipe number / Diameter (mm) | 7 / 6 |
Color | Black |
Surface treatment | Ceramic coating |
Fan specifications
Fan dimensions (mm) | 135 x 135 x 22 / 120 x 120 x 25 |
Speed @ 100% PWM /12V (rpm) | 1200 / 1500 |
Bearing technology | Fluid Dynamic Bearing |
Motor technology | 6-pole fan motor |
Rated Voltage (V) | 12 |
Input current (A) | 0.08 / 0.08 |
Input power (W) | 0.96 / 0.96 |
Connector | 4-pin PWM |
Cable length (mm) | 220 / 220 |
Lifespan (h / 25°C) | 300,000 |
