Technical specifications:
- D-RGB cable length: 500mm
- D-RGB connector: 3-pin 5V digital LED header (Pinout: +5V | Digital | Blocked | Ground)

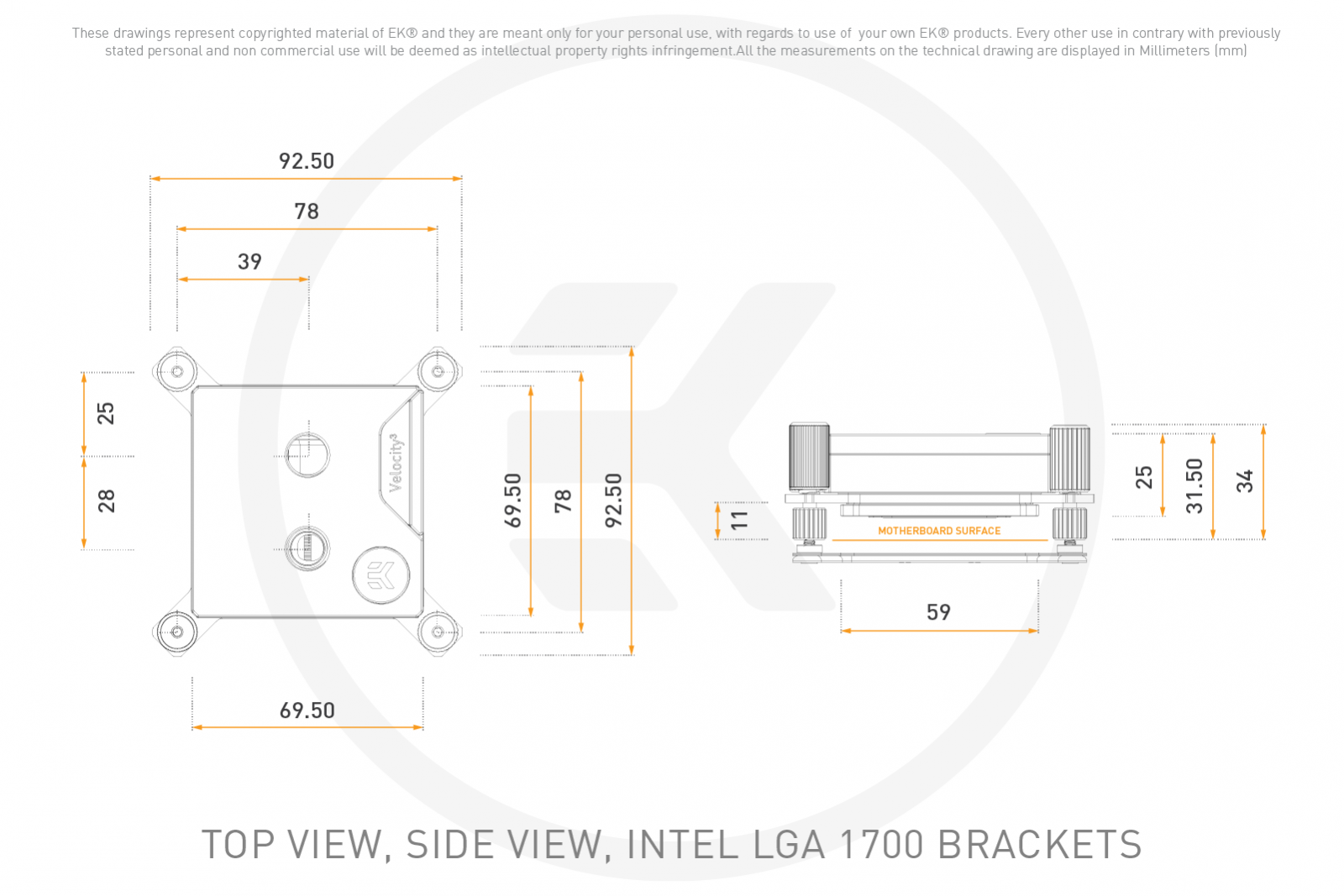

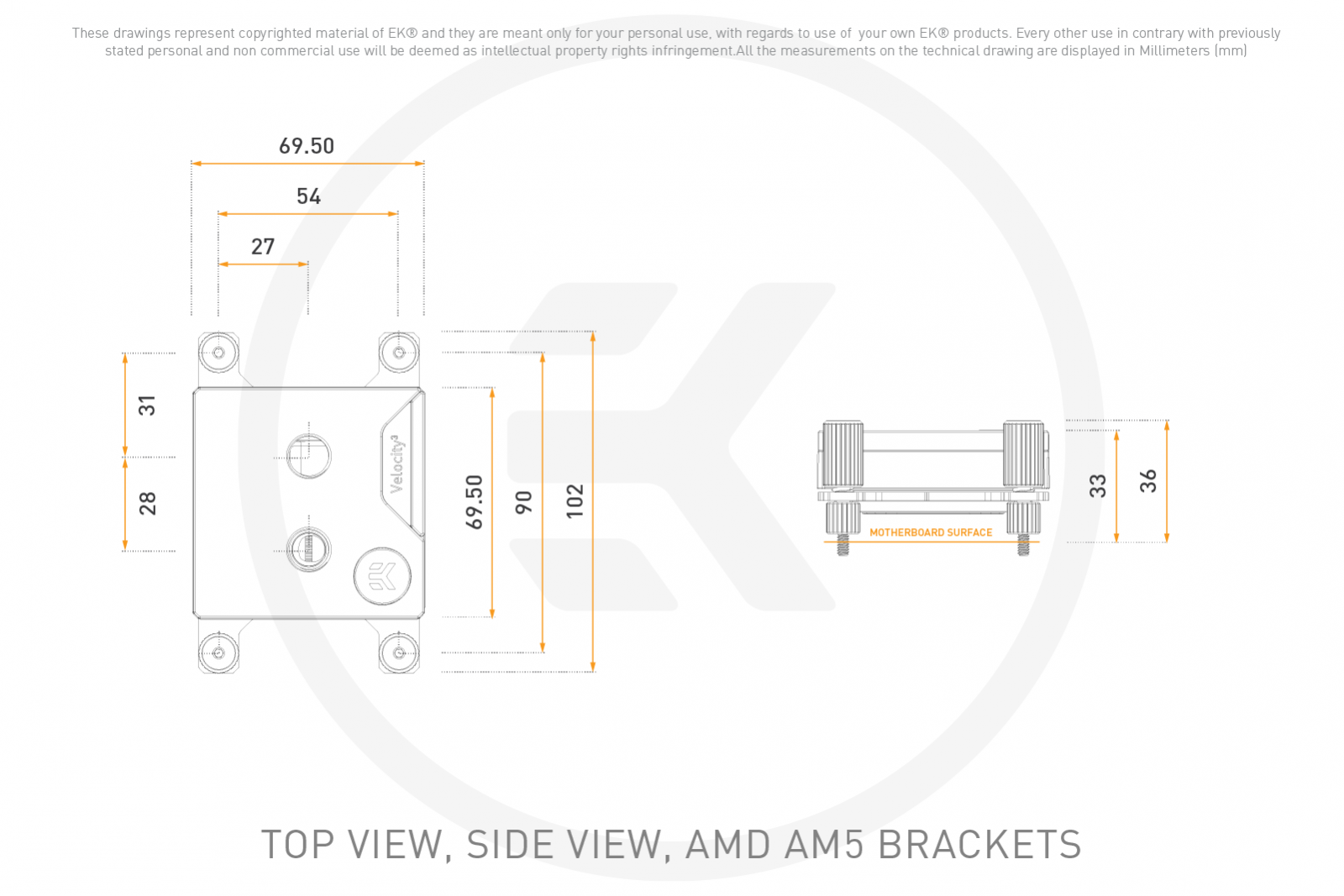

- Dimensions: 69 x 69 x 25,1mm
CPU socket compatibility:
- AMD AM5
- Intel LGA 1700
- Intel LGA 1851

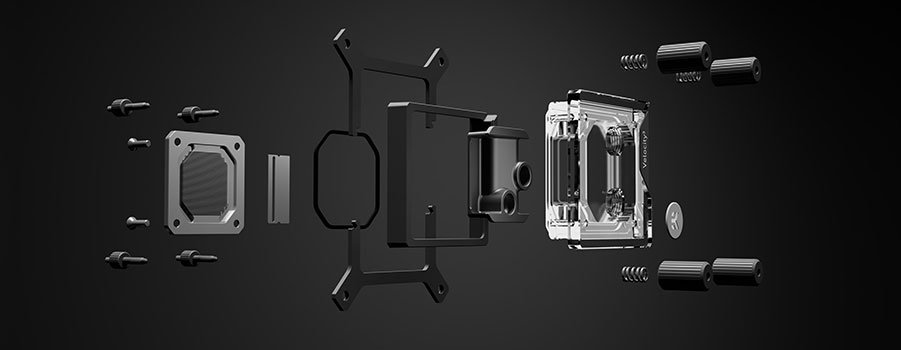

Enclosed:
- EK-Quantum Velocity³ CPU water block
- AMD and Intel mounting brackets
- EK-Loop Thermal Paste NGP (1g)
- Allen Key 2,5
Made in Slovenia – Europe!
PLEASE NOTE:
- This product should NOT be installed with any aluminum liquid cooling parts!
- The use of specifically engineered coolants that contain corrosion, scale, and biological inhibitors is mandatory to prevent damage to your nickel-plated water block! EK is offering a selection of such products in the coolants section.
- The arrow marking on the 3-pin LED connector is to be aligned with the +5V marking on the D-RGB(A-RGB) header.
- The mounting screws are engineered with a hard-stop design, once the screw reaches the end of the thread, stop applying more force.
Additional Info
| Material / Design / Color option | White |
|---|---|
| Threads | G1/4 |
| Sockets | AM5, LGA 1700, LGA 1851 |
