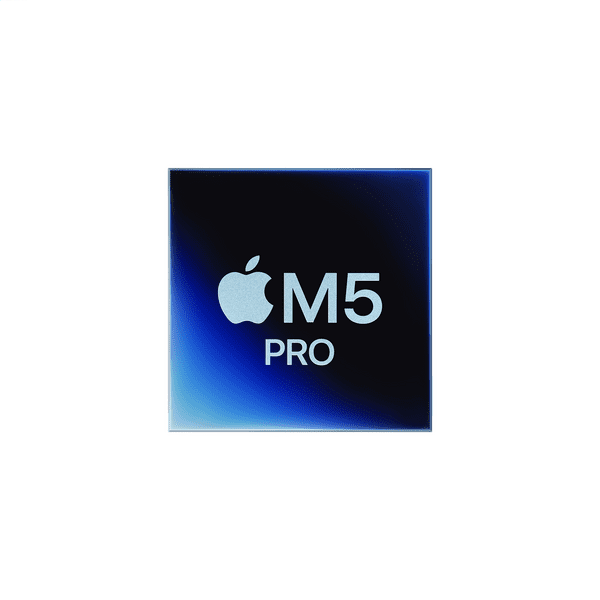

Apple M5 Pro chip
- 18-core CPU with 6 super cores and 12 performance cores
- 20-core GPU
- Neural Accelerators
- Hardware-accelerated ray tracing
- 16-core Neural Engine
- 307GB/s memory bandwidth
Media Engine
- Hardware-accelerated H.264, HEVC, ProRes, and ProRes RAW
- Video decode engine
- Video encode
engine - ProRes encode
and decode engine - AV1 decode
24GB unified memory
1TB SSD
Liquid Retina XDR display
16.2-inch (diagonal) Liquid Retina XDR display;2 3456-by-2234 native resolution at 254 pixels per inch
XDR (Extreme Dynamic Range)
- 1,000,000:1 contrast ratio
- XDR brightness: 1000 nits sustained full-screen, 1600 nits peak3 (HDR content only)
- SDR brightness: up to 1000 nits (outdoor)
Color
- 1 billion colors
- Wide color (P3)
- True Tone technology
Refresh rates
- ProMotion technology for adaptive refresh rates up to 120Hz
- Fixed refresh rates: 47.95Hz, 48.00Hz, 50.00Hz, 59.94Hz, 60.00H
-
M5 Pro
- Up to 24 hours video streaming
- Up to 17 hours wireless web
- 100-watt-hour lithium-polymer battery18
- 140W USB-C Power Adapter
- USB-C to MagSafe 3 Cable (2 m)
- Fast-charge capable with included 140W USB-C Power Adapter
M5 Max
- Up to 22 hours video streaming
- Up to 16 hours wireless web
- 100-watt-hour lithium-polymer battery18
- 140W USB-C Power Adapter
- USB-C to MagSafe 3 Cable (2 m)
- Fast-charge capable with included 140W USB-C Power Adapter
SDXC card slot
HDMI port
3.5 mm headphone jack
MagSafe 3 port
Three Thunderbolt 5 (USB-C) ports with support for:
- Charging
- DisplayPort
- Thunderbolt 5 (up to 120Gb/s)
- USB 4 (up to 120Gb/s)
M5 Pro
- Supports up to three external displays over any combination of Thunderbolt and HDMI ports:
- Three displays up to a native resolution of 6K at 60Hz or 4K at 144Hz or
- One display up to a native resolution of 8K at 60Hz or 5K at 120Hz or 4K at 240Hz plus a second display up to a native resolution of 5K at 120Hz or 4K at 200Hz
- Supports up to three external displays over a single Thunderbolt port
- Simultaneously supports the built-in display at full native resolution
M5 Max
- Supports up to four external displays over any combination of Thunderbolt and HDMI ports:
- Four displays up to a native resolution of 6K at 60Hz or 4K at 144Hz or
- Two displays up to a native resolution of 8K at 60Hz or 5K at 120Hz or 4K at 240Hz
- Supports up to four external displays over a single Thunderbolt port
- Simultaneously supports the built-in display at full native resolution
- Thunderbolt 5 (USB-C) ports support native DisplayPort 2.1 speeds
- Supported formats include HEVC, H.264, AV1, and ProRes
- HDR with Dolby Vision, HDR10+/HDR10, and HLG
Supported formats include AAC, MP3, Apple Lossless, FLAC, Dolby Digital, Dolby Digital Plus, and Dolby Atmos
Backlit Magic Keyboard with:
- 78 (ANSI) or 79 (ISO) keys including 12 full-height function keys
- Touch ID
- Ambient light sensor
- Force Touch trackpad for precise cursor control and pressure-sensing capabilities; enables Force clicks, accelerators, pressure-sensitive drawing, and Multi-Touch gestures
Apple N1 wireless networking chip
- Wi-Fi 7 (802.11be)6
- Bluetooth 6
- Thread networking technology
- 12MP Center Stage camera with support for Desk View
- 1080p HD video recording
- Advanced image signal processor with computational video
- High-fidelity six-speaker sound system with force-cancelling woofers
- Wide stereo sound
- Support for Spatial Audio when playing music or video with Dolby Atmos on built-in speakers
- Spatial Audio with dynamic head tracking when using supported models of AirPods, AirPods Pro, and AirPods Max7
- Studio-quality three-mic array with high signal-to-noise ratio and directional beamforming
- Voice Isolation and Wide Spectrum microphone modes for enhanced voice clarity in audio and video calls
- 3.5 mm headphone jack with advanced support for high-impedance headphones
- HDMI port supports multichannel audio output
- Line voltage: 100V to 240V AC
- Frequency: 50Hz to 60Hz
- Operating temperature: 50° to 95° F (10° to 35° C)
- Storage temperature: –13° to 113° F (–25° to 45° C)
- Relative humidity: 0% to 90% noncondensing
- Operating altitude: tested up to 10,000 feet (3000 meters)
- Maximum storage altitude: 15,000 feet
- Maximum shipping altitude: 35,000 feet
