Be quiet! Shadow Rock TF2
Öflug “Top down” loftkæling með allt að 160W TDP kæligetu, hljóðlát kælivifta og stílhreint útlit.
11.500 kr.
Smelltu hér fyrir ítarlegri upplýsingar um þessa vöru
| Model | Shadow Rock TF 2 |

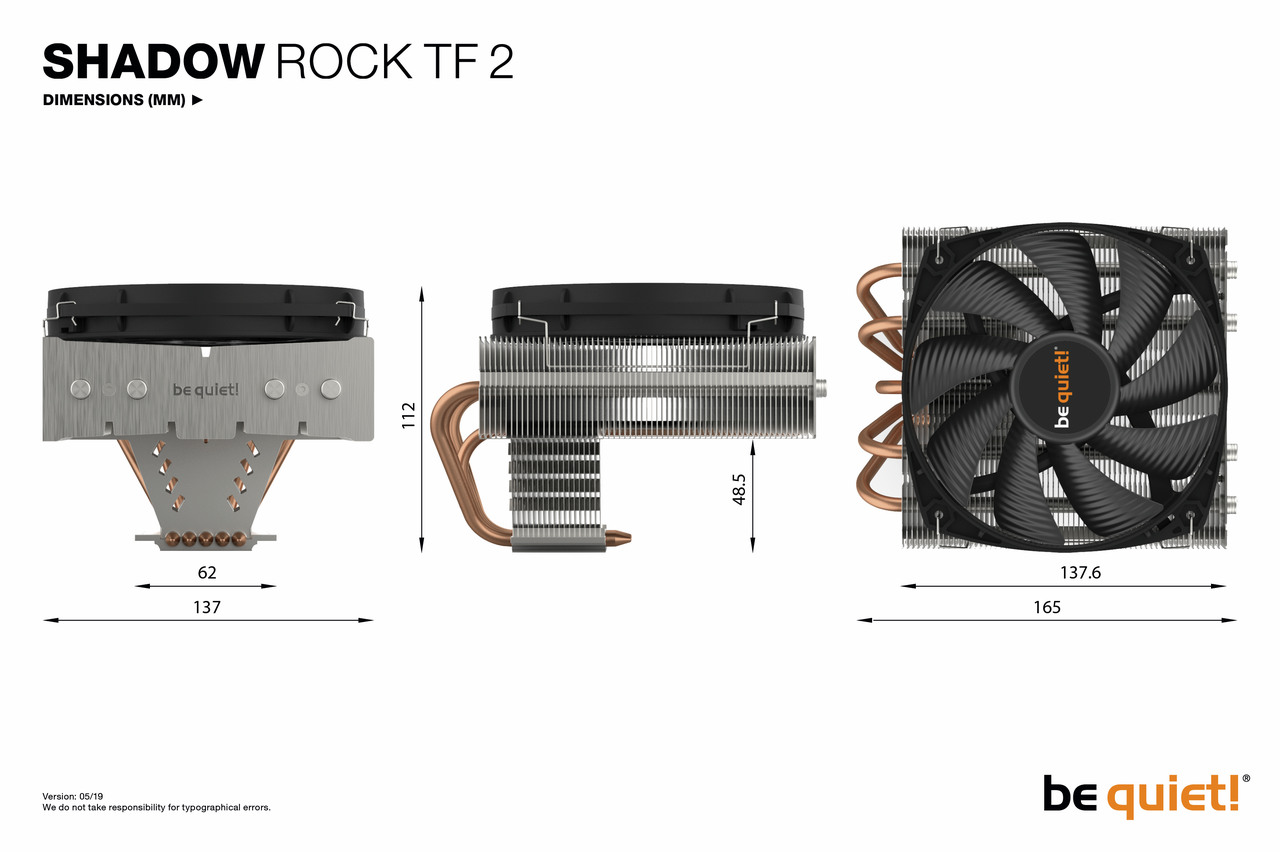

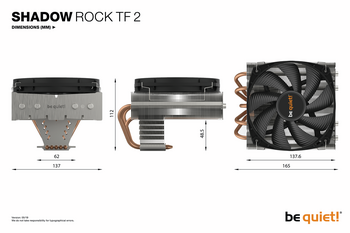

| Overall dimensions without mounting material (L x W x H), (mm) | 137 x 165 x 112 |
| Total weight (kg) | 0.68 |
| TDP (W) | 160 |
| Socket compatibility AMD | AM2(+) / AM3(+) / AM4 / FM1 / FM2(+) |
| Socket compatibility Intel | 775 / 115x / 1200 / 1366 / 2011(-3) Square ILM / 2066 |
| Fan model, number | 1x silence-optimized be quiet! fan |
| Decoupled fan mounting | – |
| Overall noise level (dB(A)) @ 50/75/100% (rpm) | 11.9 / 19.3 / 24.4 |
Infographics
Heatsink specifications
| Dimensions (L x W x H), (mm) | 137 x 165 x 87 |
| Number of fins | 57 |
| Fin material | Aluminum |
| Base material | Copper |
| CPU contact surface | CNC machined |
| Heatpipe number / Diameter (mm) | 5 / 6 |
| Color | Silver |
| Surface treatment | Brushed |
Fan specifications
| Fan dimensions (mm) | 135 x 135 x 22 |
| Speed @ 100% PWM /12V (rpm) | 1400 |
| Bearing technology | Rifle |
| Motor technology | 4-pole fan motor |
| Rated Voltage (V) | 12 |
| Input current (A) | 0.11 |
| Input power (W) | 1.32 |
| Connector | 4-pin PWM |
| Cable length (mm) | 200 |
| Lifespan (h / 25°C) | 80,000 |
